Description

The EJC M10 E is a cost-effective entry into the Jungheinrich electric forklift segment. It supports you when transporting loads up to 1,000 kg and stacking pallets up to 1900 mm in height. The Monomast also makes the EJC M10 E ideal for picking. The electric high-lift truck is particularly suitable for small and medium-sized companies with an occasional need for transport and storage tasks.

. Different mast heights available
. Monomast with optimized transparency
. Very agile thanks to compact dimensions
. Energy-efficient three-phase motor
. Maintenance-free gel battery
. Integrated charger for easy charging

The EJC M10 E has been specially developed for use in small and medium-sized companies with an occasional demand for goods transports. The 0.6 kW powerful engine supports you when transporting pallets and goods up to 1,000 kg over short distances. The electric high-lift truck is ideal for order picking or occasional palleting of pallets up to a height of 1900 mm.

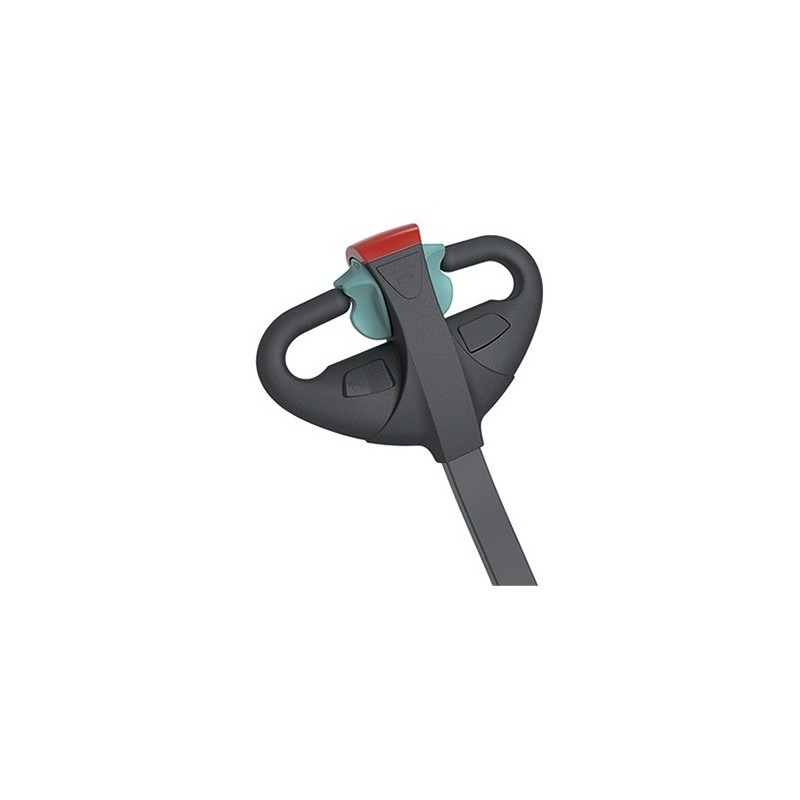

The ergonomically designed, handlebar handle on both sides is particularly user-friendly. They control all lifting and lowering functions comfortably from the multi-function drawbar head and can therefore concentrate entirely on stacking in or out. All important control instruments such as the battery indicator, operating hours counter, emergency stop switch and key are arranged centrally and are located directly in your field of view.

Due to its compact design and the small front length, the tiller truck shows maximum maneuverability and allows safe use even in confined spaces. Due to a low ground clearance of only 30 mm, the risk of injuries in the foot area is significantly reduced. The complete casing of the vehicle housing provides additional protection.
The low chassish height of the EJC M10 E also enables smaller operators to have an optimal view of the fork tips. The Monomast offers optimized visibility and makes the handling of the electric forklift easy and safe.

Thanks to the maintenance-free and powerful three-phase current technology, you reduce your operating costs and create the best conditions for a fast and cost-efficient handling of goods. The 0.6 kW driving motor allows a pleasant and fast acceleration with excellent driving behavior. For an economical energy management, the regenerative brake also provides an energy recovery when the driving speed is reduced.

The vehicle switches off automatically after 30 minutes without use. With this intelligent automatic switch-off, the battery is protected. The maintenance-free gel battery, together with the integrated charger, allows a flexible insert and can be easily charged to any 230 V socket. Annoying refilling of water is completely unnecessary.

Take advantage of the low-cost entry into the Jungheinrich electric forklift segment and buy the EJC M10 E at the desired lifting height

Manufacturer
Jungheinrich
Model
EJC M10E
Drive mode
Pedestrian
Load capacity / rated load
1000 kg
Load centre distance
600 mm
Load distance
803 mm
Wheelbase
1125 mm
Net weight incl battery
460 kg ( E 1540 )
478 kg ( E 1900 )
Axle load with load front/rear
Axle load without load front / rear
Tyres
Polyurethane
Load wheels type
Single / Tandem
Number of front / rear wheels
1x + 1 / 4
Steering / drive wheel material
Nylon
Load wheels material
Polyurethane / Nylon
Tread width, front
550 mm
Tread width, rear
390 mm
Lift
1540 mm
1900 mm
Retracted mast height
1935 mm ( E 1540 )
2295 mm ( E 1900 )
Extended mast height
1975 mm ( E 1540 )
2335 mm ( E 1900 )
Height, lowered
85 mm
Height of tiller in drive position min / max
740 / 1190 mm
Overall lenght
1615 mm
Length to face of forks
465 mm
Overall width
800 mm
Fork dimensions
55 / 172 / 1150 mm
Width across forks
540 mm
Ground clearance centre of wheelbase
30 mm
Aisle width (pallet 1000×1200 sideways)
2127 mm
Aisle width (pallet 800x1200 length)
2059 mm
Turning radius
1295 mm
Travel speed, laden / unladen
4.5 / 5 km/h
Lift speed, laden / unladen
0.12 / 0.22 m/s
Lowering speed, laden / unladen
0.15 / 0.12 m/s
Max. gradeability laden / unladen
4 / 10 %
Service break
electric
Lift motor rating
2.2 kW
Battery according to DIN 43531/35/36
DIN 43531 /35/36
Battery voltage / nominal capacity
24V / 85Ah
Battery weight
49 kg
Energy consumption according to VDI cycle
0.73 kWh/h
Sound pressure level at operator's ear as per EN 12053
66 dB (A)
Additional wheels (dimensions)
100 x 50 mm
Packages
New equipment

Electric pedestrian stacker Jungheinrich EJC M10E, capacity 1000 kg, lift height 1540 - 1900 mm

  • Lift height 1540 / 1900 mm
  • Single stage mast with optimised view
  • Highly agile thanks to compact dimensions

Lei22,622.87
Tax excluded
€4,490.00
51984703
Status: Out of stock
